How It Works¶
CodePlane is a local server that wraps the agent CLIs you already use and builds a normalized intelligence layer on top. It does not contain its own AI — it orchestrates, observes, and enriches agent sessions from Claude Code and GitHub Copilot.
What CodePlane Is¶
- A BYOCLI platform. You install and authenticate agent CLIs (Claude Code, GitHub Copilot). CodePlane manages them — or simply observes them.
- A headless, local-first server that runs on your workstation — no editor required. Access it from any browser, or remotely from your phone via tunnels.
- An intelligence layer that enriches raw agent sessions with semantic trails, cost attribution, structural risk scoring, narrative review, and workspace memory.
- Zero workflow change if you want it. Mirror native CLI sessions you’re already running — no need to launch jobs through CodePlane to get the value.

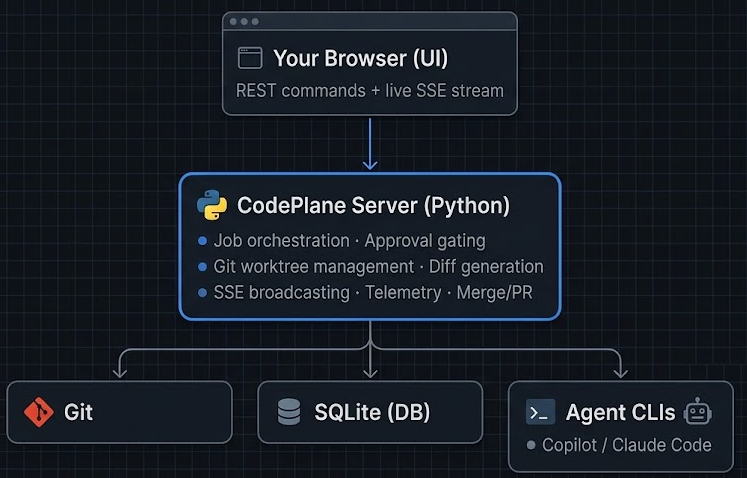

High-Level Architecture¶
You → Browser → CodePlane → Agent CLI → Repository
Data Architecture¶
Every agent session — managed or mirrored — is normalized into a local SQLite database at ~/.codeplane/. The schema captures:
- Jobs — prompt, repo, agent, model, timestamps, state transitions
- Events — every domain event (transcript updates, approval requests, state changes, log lines, telemetry)
- Spans — per-turn token counts and precomputed cost with model-aware pricing
- Trails — structured intent graph nodes with enrichment (rationale, intent, motivation)
- Activities — semantic groupings of related turns (implementation, verification, investigation) with cost rollups
- Observations — cross-job patterns: waste, rework, cost anomalies, behavioral signals that persist across sessions
- Steps — plan tracking with structural health checks per step
No data leaves your machine unless you explicitly configure OTEL export or push a branch to a remote.
The database is a standalone asset. Query it with sqlite3, point a notebook at it, or let another agent analyze your agent history — even if you never open the UI.
Sidecar Intelligence¶
CodePlane runs parallel LLM sessions alongside the agent — not hooks that fire after the fact, but persistent reasoning processes that observe and intervene in real time.
Built-in Sidecars¶
| Sidecar | What It Does |
|---|---|
| Enricher | Annotates trail nodes with rationale, purpose, and edit motivations as the agent works |
| Planner | Infers the agent’s strategy and tracks progress against it |
| Arbiter | Detects stalled or looping agents and autonomously recovers them via message injection |
| Activity Detector | Groups turns into semantic activities and detects boundaries |
Custom Sidecars¶
Define custom sidecars in plain English. A sidecar is a system prompt, a trigger condition, and an action — CodePlane manages the LLM session and the observation pipeline.
Feedback Loop¶
Sidecars can feed intelligence back to the agent via AgentMessageRoute. This is unique — most tools fire one-shot hooks. CodePlane maintains a persistent reasoning session that can intervene mid-run.
Structural Code Analysis¶
CodePlane integrates CodeRecon for graph-based structural analysis of agent-generated code changes. After each step, CodeRecon:
- Classifies changes as symbol additions, removals, modifications, or moves
- Traces callers and references of modified symbols and assigns confidence tiers
- Scores each change by risk (severity × unknown ratio × test gap)
- Detects dependency cycles introduced by the change
- Groups related changes into communities and measures coupling drift
- Produces a merge confidence verdict (HIGH / MEDIUM / LOW)
This provides reviewers with a structural signal grounded in code graph analysis — a fundamentally different input from LLM-based code review.
Key Concepts¶
Jobs¶
A job is a single coding task. You provide a prompt, repository, agent, and model. CodePlane creates an isolated Git worktree for the job and starts an agent session. Each job has its own worktree, so multiple jobs can run concurrently without interfering.
Worktrees¶
Every job runs in a Git worktree — a separate checkout of the repository on a temporary branch. Your main working directory is never modified. When the job completes, you choose to merge, create a PR, or discard.
Events & SSE¶
All activity flows through domain events: job state changes, transcript updates, approval requests, log lines, diff updates, and telemetry. The browser receives these as a live SSE stream for real-time updates.
Agent Adapters¶
Each agent CLI/SDK is wrapped behind a common adapter interface. CodePlane manages the SDK internals so you don’t have to — you just install and authenticate the CLI. Adding support for a new agent means writing one adapter file.
Decision Trail¶
Every agent action is recorded as a trail node — a structured entry in an intent graph that captures what the agent did, why, and how:
- Node kinds: goal, turn, reasoning, decision, modify, write, verify, investigate, backtrack
- Intent enrichment: an async LLM pipeline annotates nodes with intent, rationale, and outcome
- Activity grouping: related turns are grouped into semantic activities with LLM-driven boundary detection
- Policy context: each node records its tier classification, reversibility, and checkpoint reference
The trail feeds the narrative review, cost attribution, and post-hoc debugging of agent behavior.
Action Policy Engine¶
When an agent tries to perform an action, CodePlane’s action policy engine classifies it and assigns a tier:
| Tier | Behavior |
|---|---|
| Observe | Proceed — record only |
| Checkpoint | Create a Git savepoint, then proceed |
| Gate | Block until operator approves |
Classification considers action kind, containment, reversibility, path rules, and cost thresholds. The engine supports cost-aware tier escalation, batch approval (consecutive gate-tier actions become one prompt), session trust grants with TTL, protected path rules, and cost ceiling rules.
Authentication¶
CodePlane uses your existing CLI authentication. There is no separate auth system.
- For GitHub Copilot CLI: your existing GitHub authentication (
gh auth login) - For Claude Code CLI: your existing Anthropic credentials
If the agent CLIs work on your machine, CodePlane can use them. Run cpl doctor to verify.
Infrastructure Details¶
Sharing & Public Access¶
Jobs can be shared via share tokens — ephemeral, read-only authorization strings. A share token grants access to a single job’s metadata and SSE stream without requiring authentication. Tokens are stored in-memory with a 24-hour TTL and are lost on server restart.
Public share endpoints serve a minimal read-only view. No mutation operations (approvals, messages, cancellation) are exposed.
Push Notifications¶
CodePlane uses the Web Push protocol (VAPID) to deliver browser notifications for approval requests, job completions, and failures. VAPID keys are generated at first startup and stored in ~/.codeplane/vapid.json. Subscriptions are managed in-memory — the service worker re-subscribes automatically after a server restart.
Port Preview Proxy¶
The backend includes a reverse proxy that forwards requests from /api/preview/{port}/ to 127.0.0.1:{port}. Combined with a tunnel, this lets you access development servers running on the workstation from a remote device. Only user ports (1024–65535) are allowed; the proxy never connects to external hosts (SSRF protection).
MCP Server¶
CodePlane exposes itself as an MCP server — 7 tools for job orchestration, approval handling, workspace browsing, and repo management. External agents can delegate coding tasks to CodePlane and monitor them programmatically. See MCP Server for details.
FAQ¶
What CodePlane Is Not
- Not an AI model or agent. It orchestrates and observes agents built by others.
- Not a task decomposer — by design. One prompt, one agent, full transparency into every action it takes.
- Not a cloud service. It runs locally with optional remote access via tunnels.
- Not a replacement for your existing tools. It uses your Git, your CLI credentials, and your repos as-is.
